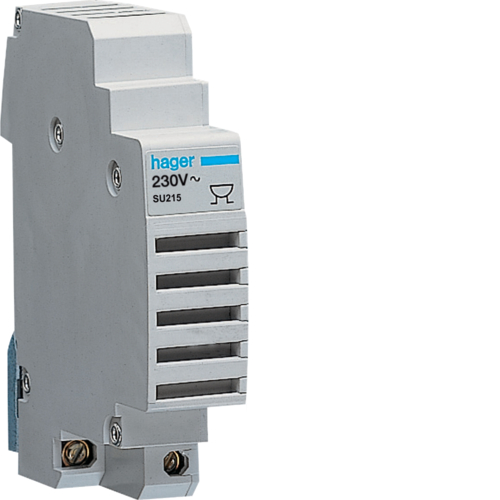

SU215
All data is subject to errors and technical modifications.
Art No.: | SU215 |
EAN No.: | 3250615712158 |
Pack qty.: | 12 prt. |
Fixing mode: | DIN rail type O (symmetrical) |
|
Rated operational voltage Ue: | 230 V |
Type of supply voltage: | AC |
Operating current: | 0,03 A |
Rated current: | 0,03 A |
Frequency: | 50 to 0 Hz |
Power consumed: | 6,5 VA |
Total power loss under IN: | 6,5 W |
Material: | polyamide |
Depth of installed product: | 65 mm |
Height of installed product: | 80 mm |
Width of installed product: | 18 mm |
Connection cross-sect. flexible conductor: | 4mm² |
Connection cross-sect. rigid cable: | 6mm² |
Noise level: | 78 dB |
HVAC-control: | no |
European directive WEEE: | concerned |
Protection index IP: | IP20 |
Operating temperature: | -10…40 °C |
Storage/transport temperature: | -25…60 °C |
